2 LP UP SERIES

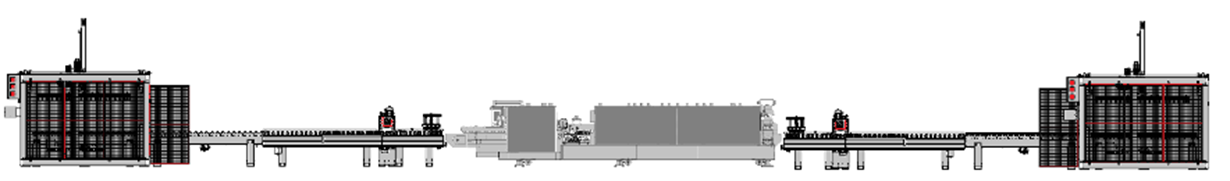

2 LP UP 3000 Robotic Automation for First and Second Pass on Double Sided Edge Banding Lines

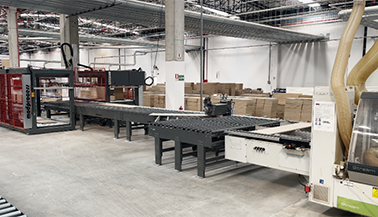

This handling robot system is specifically designed to automate the loading and unloading processes on double sided edge banding lines, working together with a continuous panel turner and requiring only a single operator. Its high performance 3 axis robot structure delivers significant time and labor savings for your operation.

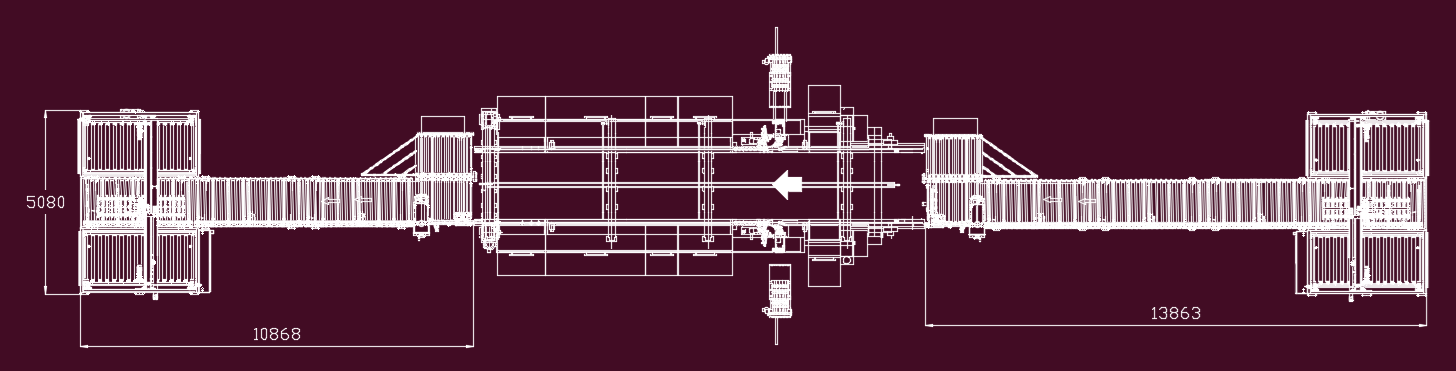

Double side lift gantry robot automation for edge banding
lines

Works as an automatic loading and unloading
system for double sided edge banding
machines via integrated software.
All movements and conveyors are servo motor
controlled.
Servo system enables precise positioning and
robot conveyor synchronization.

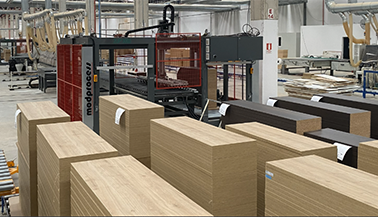

Automatically loads and stacks panels in an
ordered sequence, in single, double, or 3×6
matrix row stacked layouts.
PLC touchscreen provides easy control of
infeed and outfeed functions.
Non stop operation with a 90° conical roller
panel turning system.

Production solutions of the future

Automation and robotic technologies are the key to the future in industrial production. Automatic loading and unloading robot systems for through feed boring machines increase the competitiveness of businesses by offering the combination of these technologies. It enables businesses to achieve their goals faster with more efficient, safe and flexible production processes.

Switching to automatic loading and unloading robot systems to optimize the production processes of lthrough feed boring machines and increase efficiency allows businesses to take firmer steps into the future by strengthening their competitive advantages.

Continuous improvement and data analysis

Automated loading and unloading robotic systems support continuous improvement in production processes. They provide comprehensive information about production efficiency thanks to their data collection capabilities integrated into the system. This data helps businesses analyze and optimize their processes. Thus, businesses can continuously increase their competitive advantage by making smarter decisions.

Energy and resource efficiency

Automated loading and unloading robot systems optimize energy and resource usage. Thanks to its smart energy management features, it minimizes energy consumption while also reducing operating costs. Additionally, it ensures efficient use of natural resources by preventing material waste. This both increases environmental sustainability and provides cost savings for the business.

The advantages of

Full synchronization of the automatic panel turning system with first orsecond pass double sided edge banding lines.
Communication between robot control HMIs, with the ability to monitor and control each other remotely.

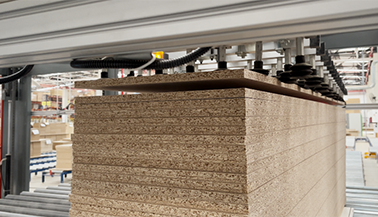

Continuously active vacuum cup system with vacuum pads that typically require no adjustment for different panel sizes.
Hydraulic stacking lift minimizes Z axis travel, enabling faster robot axismovement.

Easy maintenance and service

Our automatic loading and unloading robot system provides easy maintenance and service access. Thanks to their modular structure and remote monitoring features, maintenance processes are optimized and machine downtime is minimized. Additionally, with expert technical support and services, businesses are enabled to maintain uninterrupted production.

Global compatibility and standards
Our automatic loading and unloading robot system is designed and manufactured in accordance with international standards. This ensures access to global markets while also ensuring product quality and reliability. It ensures competitiveness in international trade for businesses and ensures that products are accepted worldwide.
