LINE AUTOMATION

Boomerang System for Edge Banding Machines

In today’s industrial world, speed, accuracy and efficiency are crucial in production processes. Edge banding machines, especially in the production of furniture, building materials and industrial equipment, are at the centre of these processes. However, innovative solutions are constantly being sought to increase the efficiency of these machines and minimise waste. This is where a new technological solution called “Boomerang System” comes into play.

Request information

What is the boomerang system?

Boomerang System is an innovative automation system used in edge banding machines. Its name is inspired by the fact that the boomerang returns on its own because the functioning of the system is quite similar. This system ensures the collection and recycling of waste material while continuously delivering material to machine operators. Thus, the workflow becomes uninterrupted and the cost of waste materials is minimized.

How does it work?

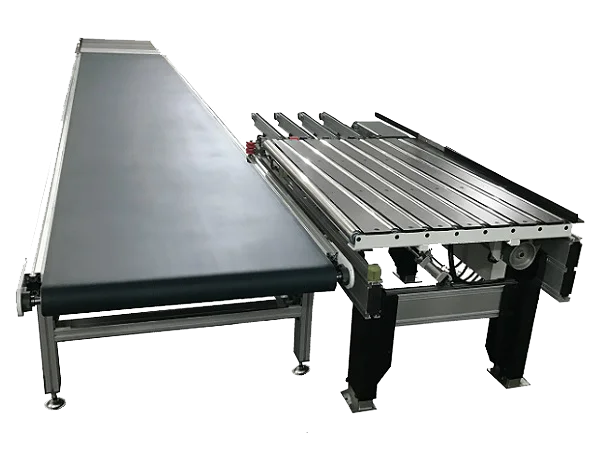

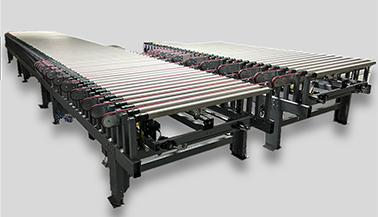

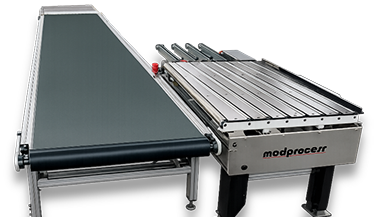

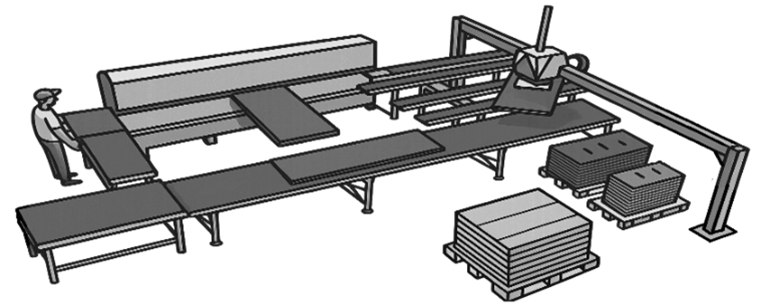

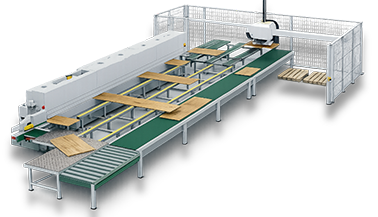

The Boomerang System is an intelligent transport and collection system integrated on the side of the edgebanding machine. The machine operator determines the required amount of material through the system when the process starts. The Boomerang System then automatically takes this material and puts it through the edge banding process. When the process is completed, the waste material is automatically collected and transferred to a suitable area for recycling. This process continues uninterruptedly without the need for human intervention.

What are the advantages?

Using the Boomerang System offers many advantages:

  1. Efficiency Increase: Production processes are optimized thanks to uninterrupted material supply and waste management.
  2. Cost Savings: Costs are reduced by minimizing the amount of waste material.
  3. Environmentally Friendly Production: Waste materials recycled reduce the negative impact on the environment.
  4. Operator Efficiency: Operators do not have to deal with tasks such as material management and waste collection, resulting in greater productivity.

Technicial Specifications

  • Conveyor width: 500-2200 mm
  • Conveyor length: between 800-12000 mm
  • Inverter speed adjustment in motorized systems
  • Roller or pneumatic table slide system

Panel features to install

  • Panel length: between 200-1500 mm
  • Panel width: between 200-800 mm
  • Panel thickness: between 10-60 mm
  • Panel weight: maximum 50 kg
  • It works synchronously up to 30 mt/minute edge banding machine speed.

Find out if the Boomerang system fits your workflow.

Let us customize the automation solution that suits you.
