ADVANCED SOFTWARE
It is the software that everyone can use with its graphical expression and touch screen developed by Modprocess and very easy to use.
- Reporting the performance of the machine in real time,
- Ability to monitor performance and production from anywhere with mobile applications,
- Industry 4.0 infrastructure,
- Planning and cost calculation
- Unlimited box registration opportunity of different types and sizes,
- Creating daily work lists,
- Reading the 3D dimensions of the material to be packaged with a scanner, camera or barcode,
- Infrastructure for making 3D layout plans for products of different sizes to be packaged in a single box and producing boxes of the smallest size,
- Printing in-box identification information directly on the box with inkjet or sticking labels,
- Transferring the box size and type to be closed to automatic box machines,
- Horizontal and vertical cutting options to ensure production with minimum waste,
- Producing two different types of boxes of your choice from your list side by side simultaneously on a single feeding carton,
- Producing 4 different boxes or sizes you choose from the list at the same time with matrix 4-fold layout,
- Easy menu in various languages.
boxmatrix

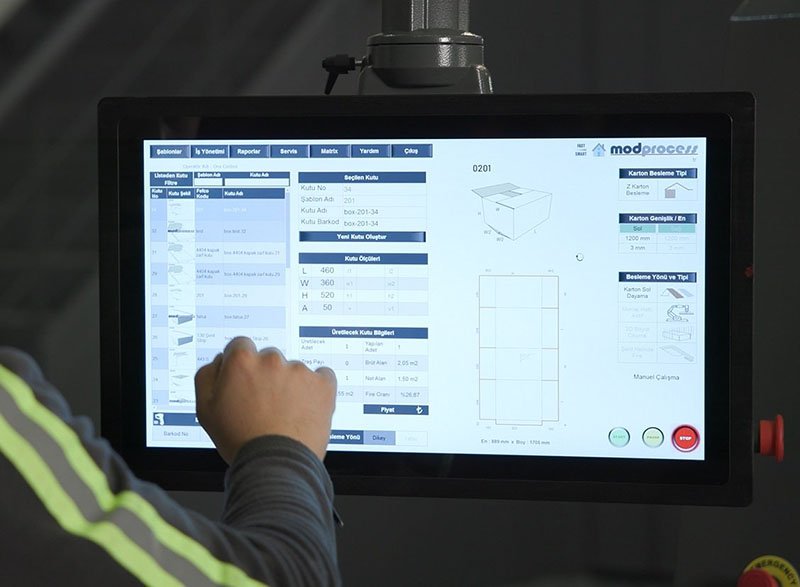

Very easy to use
- Menu in 7 languages or infrastructure for translating into the desired language
- View active box list

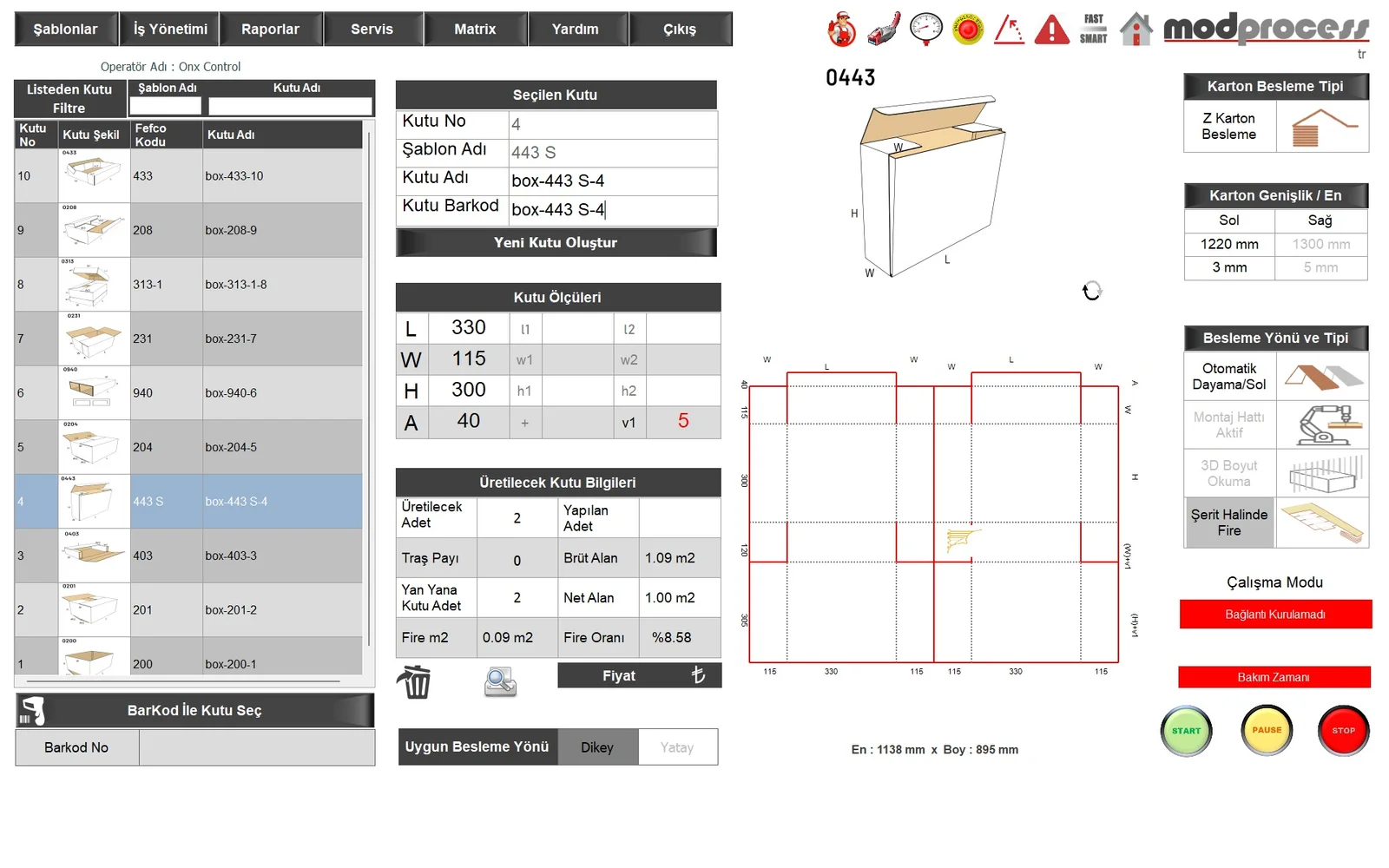

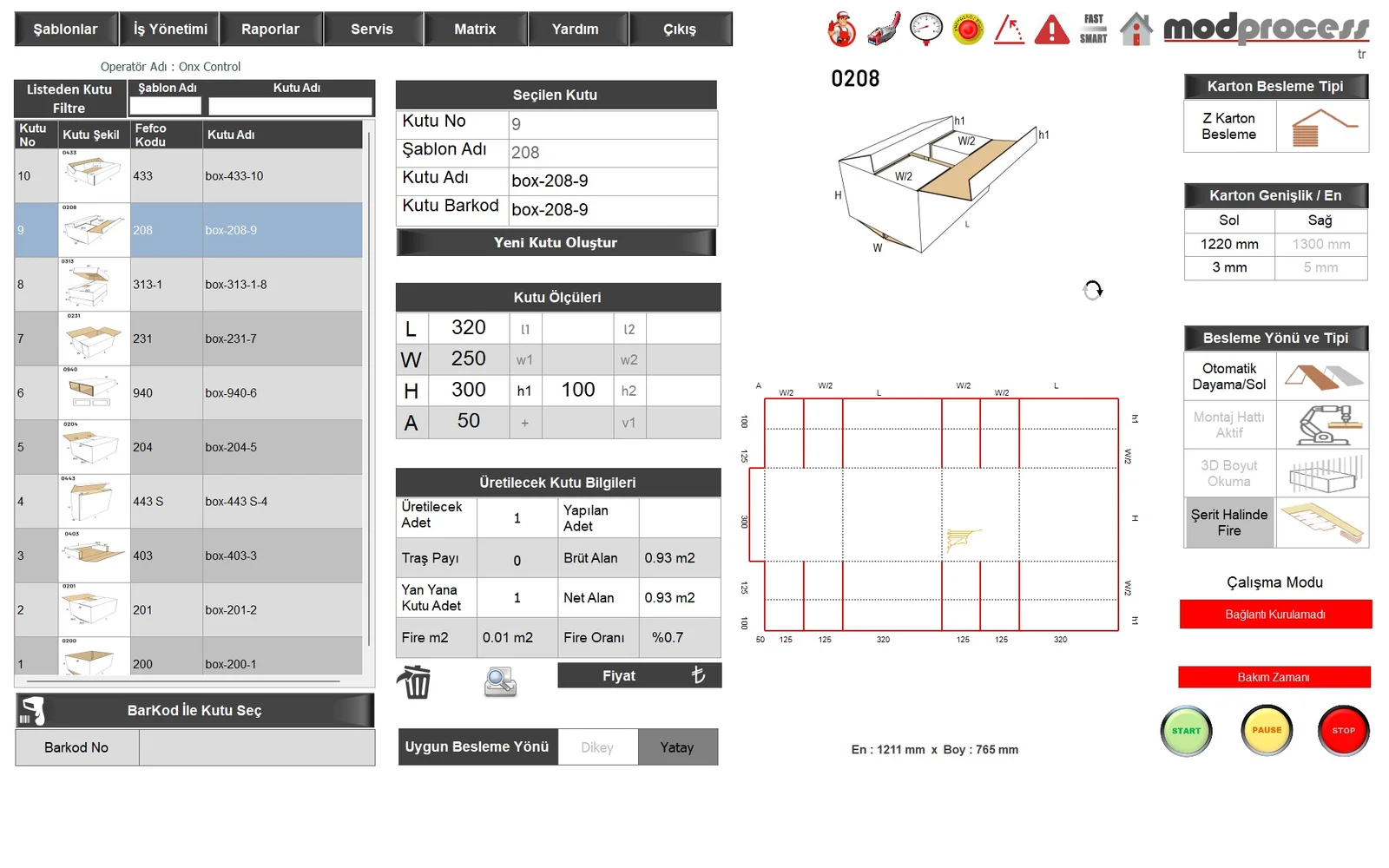

- Graphical display according to the selected box with scale
- 12 different variable size inputs
- Very easy menu that allows control of all features of the machine
- Communication with peripheral units via Ethercat and Wifi
boxmatrix
Flexible and high capacity
- Side by side production according to box size or carton width
- Rotating cutting direction longitudinally or vertically to reduce waste rate
- Switching to automatic working mode with Barcode option
- Communication with label printer and printing labels
- Robot or in-line automatic operating mode selection from the screen
- Recycling side excess cardboard for reuse as Zform
boxmatrix
Working without waste
- Thanks to special software, for waste-free work
- Continuous and waste-free production in the same box template side by side according to the number of heads

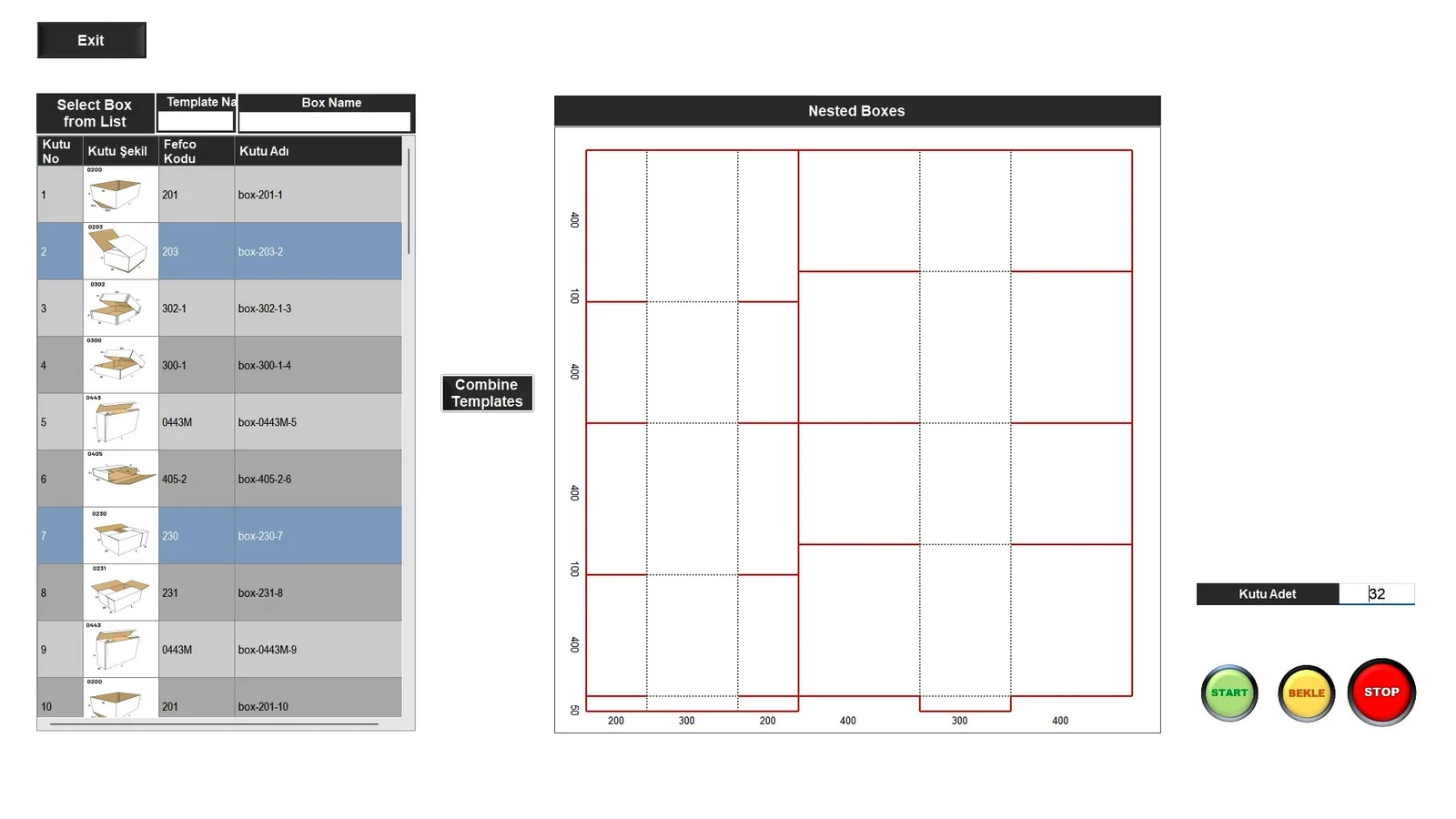

- Producing different box models side by side from the same cardboard with the 2N1 option
- Producing 4 different box models at the same time with the Matrix option
- Adjusting waste rates by selecting longitudinal or transverse cutting direction in all options
boxmatrix

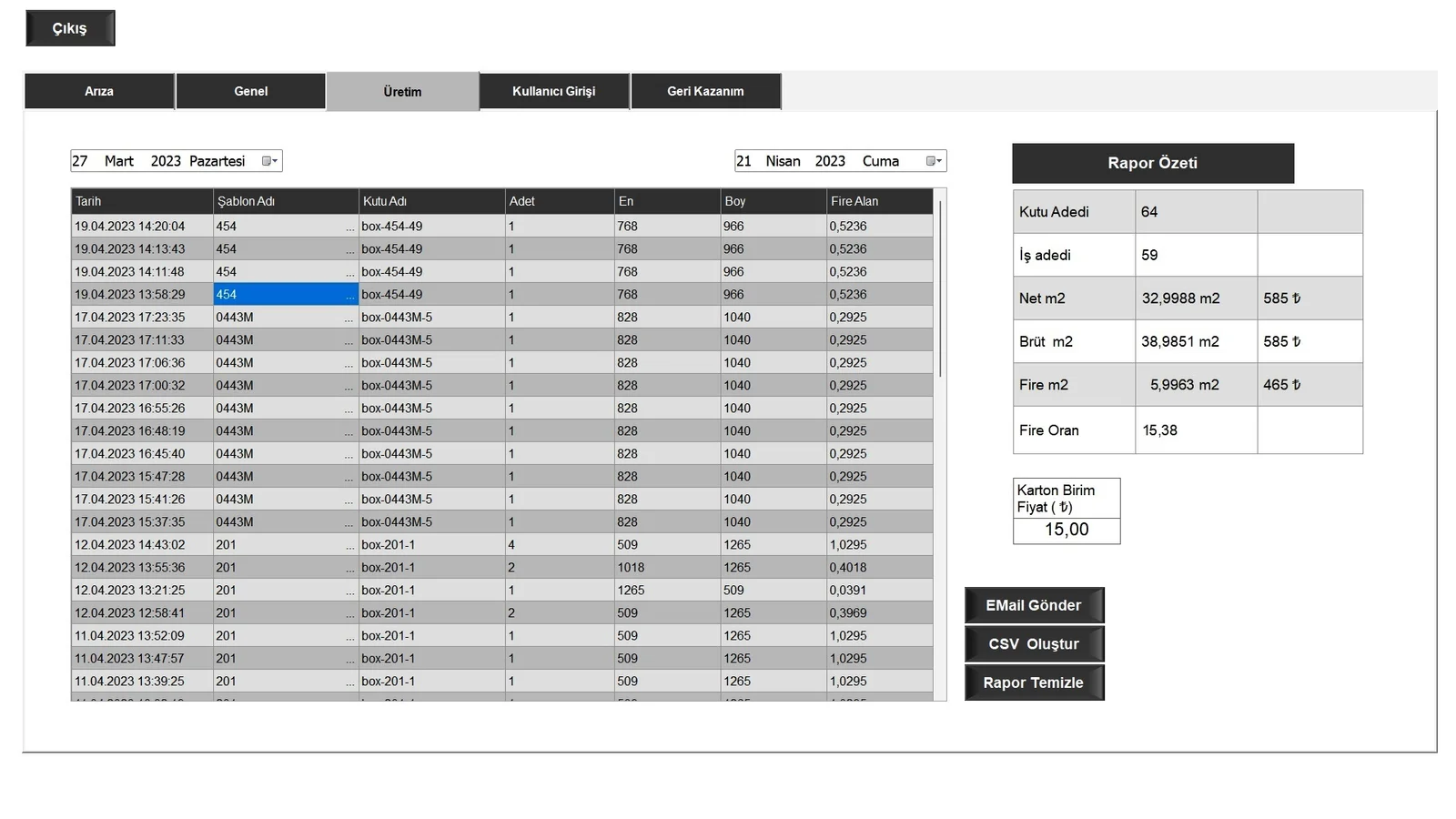

Reporting
- Report performance for the machine
- Measuring operator performance with user-specific password login
- Daily, monthly and annual production reports
- Detailed cardboard cost calculation with the amount of square meters produced and wastage
- Follow-up of the accounting and planning departments with the calculation of the number of boxes made, their size and square meter quantity.
- All reports are notified via e-mail as Excel files.
boxmatrix
Design your own box

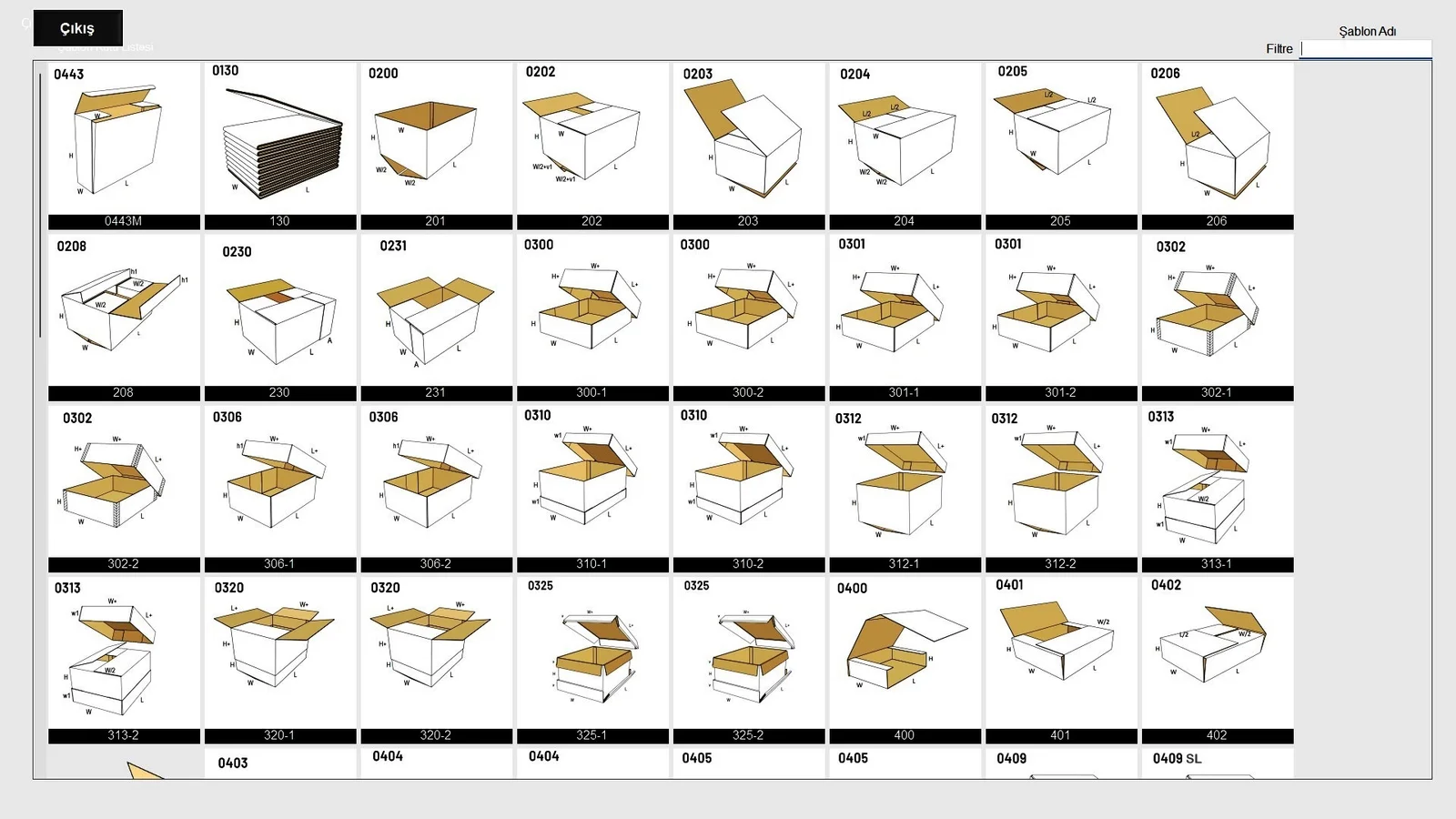

- Archive of more than 100 ready-made box models
- Designing a box with 2D matrix drawing
- Defining variables with 12 variables and 4 operation formulas
- Graphical decision-making on cutting, folding marks and perforation (option) locations
- Saving unlimited box dimensions with new names in master box models
Improve your packaging process with packaging solutions from ModProcess.
Let us customize the packaging solution that suits you.
